This tool was built for a client who investigates suspected fraudulent cryptocurrency transactions. The investigators knew what to look for, but the process of tracing transactions, compiling evidence, and producing formatted reports was manual and repetitive. The tool automates the mechanical parts so investigators focus on analysis.

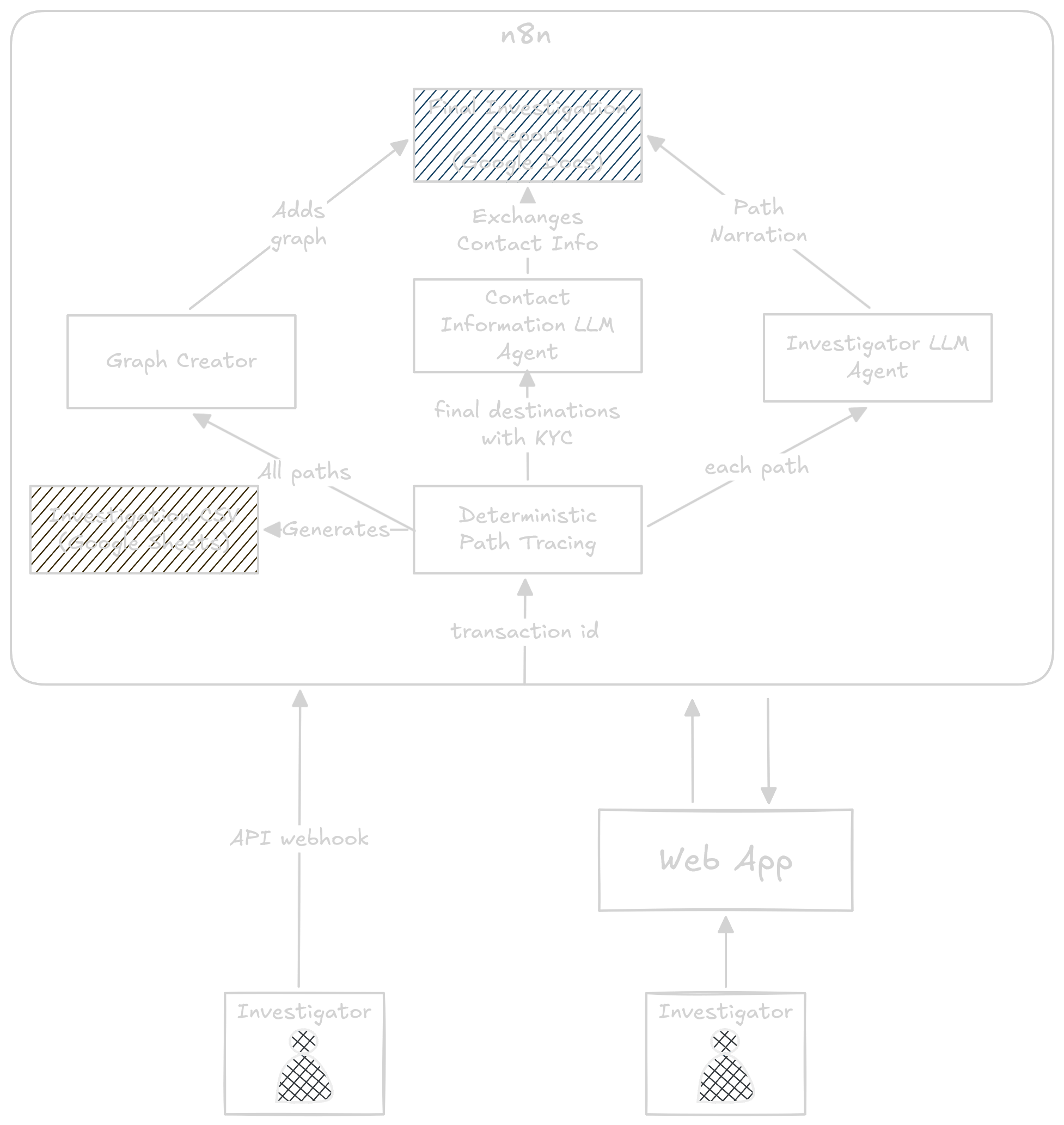

How it works
Investigator Application n8n Pipeline
│ │ │
├── creates case ──────────────►│ │
├── submits addresses ─────────►│── triggers workflow ─────────►│
│ │ ├── traces transactions
│ │◄── webhook: status update ────┤
│ │ ├── analyzes patterns
│ │◄── webhook: status update ────┤
│ │ ├── compiles evidence
│ │◄── webhook: document ready ───┤
│ │ │
├── views results ◄────────────►│ │
└── downloads reports ◄────────►│ │
The investigator creates a case in the React frontend, submits cryptocurrency addresses, and the backend triggers an n8n workflow. n8n is an open-source workflow automation tool that executes visual, step-by-step pipelines.
The pipeline handles transaction tracing, pattern analysis, evidence compilation, and document generation. It calls back to the AdonisJS API via webhooks to update investigation status and deliver generated documents. Status updates stream to the frontend in real time via AdonisJS Transmit (SSE).
Output
The pipeline produces two types of reports:
- Excel spreadsheets -- structured transaction data and analysis tables for analytical review
- DOCX documents -- formatted investigation reports for formal use
Key architecture decision
The application handles case management, user access, and document delivery. n8n handles the investigative work. This separation means the pipeline is extensible without deployments.
Other features
- License acceptance flow before accessing investigations
- Admin user management with soft deletes and restoration
- Dashboard with investigation statistics
- Real-time status updates via SSE
Stack
Backend: AdonisJS 6, PostgreSQL, Vine validation, MJML email templates
Frontend: React (Vite), Tailwind, Zustand, react-markdown, Lucide icons
Automation: n8n with webhook-based integration
Esta herramienta fue construida para un cliente que investiga transacciones de criptomonedas sospechosas de fraude. Los investigadores sabian que buscar, pero el proceso de rastrear transacciones, compilar evidencia y producir reportes formateados era manual y repetitivo. La herramienta automatiza las partes mecanicas para que los investigadores se enfoquen en el analisis.
Como funciona
Investigador Aplicacion Pipeline n8n
│ │ │
├── crea caso ─────────────────►│ │
├── envia direcciones ─────────►│── dispara workflow ───────────►│
│ │ ├── rastrea transacciones
│ │◄── webhook: update de estado ─┤
│ │ ├── analiza patrones
│ │◄── webhook: update de estado ─┤
│ │ ├── compila evidencia
│ │◄── webhook: documento listo ──┤
│ │ │
├── ve resultados ◄────────────►│ │
└── descarga reportes ◄────────►│ │
El investigador crea un caso en el frontend React, envia direcciones de criptomonedas, y el backend dispara un workflow de n8n. n8n es una herramienta de automatizacion de flujos de trabajo open-source que ejecuta pipelines visuales paso a paso.
El pipeline maneja rastreo de transacciones, analisis de patrones, compilacion de evidencia y generacion de documentos. Llama de vuelta al API AdonisJS via webhooks para actualizar el estado de la investigacion y entregar documentos generados. Las actualizaciones de estado llegan al frontend en tiempo real via AdonisJS Transmit (SSE).
Output
El pipeline produce dos tipos de reportes:
- Hojas de calculo Excel -- datos de transacciones estructurados y tablas de analisis para revision analitica
- Documentos DOCX -- reportes de investigacion formateados para uso formal
Decision de arquitectura clave
La aplicacion maneja gestion de casos, acceso de usuarios y entrega de documentos. n8n maneja el trabajo investigativo. Esta separacion significa que el pipeline es extensible sin deployments.
Otras funcionalidades
- Flujo de aceptacion de licencia antes de acceder a investigaciones
- Gestion de usuarios admin con soft deletes y restauracion
- Dashboard con estadisticas de investigaciones
- Actualizaciones de estado en tiempo real via SSE
Stack
Backend: AdonisJS 6, PostgreSQL, validacion Vine, templates de email MJML
Frontend: React (Vite), Tailwind, Zustand, react-markdown, iconos Lucide
Automatizacion: n8n con integracion basada en webhooks
